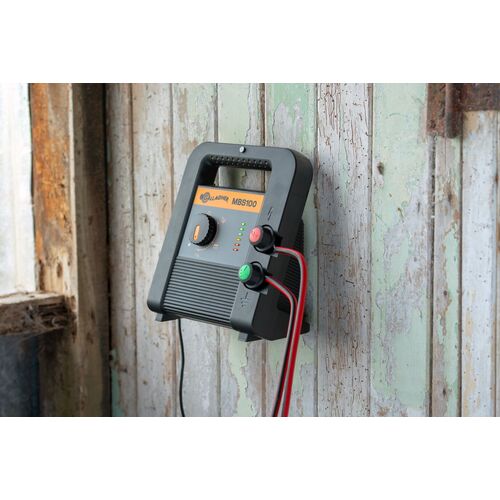

Gallagher MBS100 Multi Powered Energizer

Gallagher MBS100 is a multi-powered electric fence energiser that runs from mains, battery or solar, with 1 joule of stored energy.

The MBS100 can be set up as a portable or permanent fence energiser wherever the power source happens to be. An LED bar graph shows fence voltage and battery status. Mains, battery and fence lead sets are included; the Gallagher solar kit is sold separately. A smart battery-management algorithm helps protect a connected battery from being over-discharged. It is covered by a 3-year Gallagher warranty.

Key features of the Gallagher MBS100 multi-powered energiser

• Designed for mains, battery or solar installations
• LED bar graph for fence voltage and battery status
• Portable, water-resistant case with built-in lightning protection
• Fast, flexible installation for portable or permanent fences
• Mains, battery and fence lead sets included (Gallagher solar kit sold separately)
• Smart battery management to help protect the battery from over-discharge
• 3-year warranty

Range and livestock uses

• Gallagher’s recommended multiwire distance is 3 km, or up to 10 km in ideal conditions, for a property size of 4 hectares
• Suited to livestock fencing where mains, battery or solar power may be used, including portable and permanent set-ups

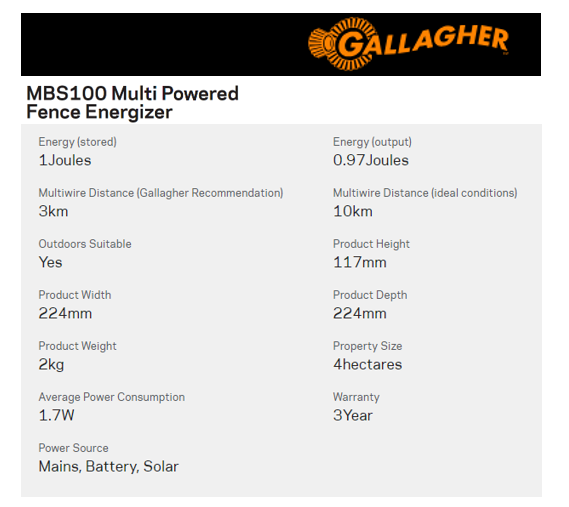

Gallagher MBS100 specifications

• Stored energy: 1 joule
• Output energy: 0.97 joules
• Average power consumption: 1.7 W
• Power source: mains, battery or solar
• Product weight: 2 kg
• Dimensions: 117 mm H × 224 mm W × 224 mm D
• Outdoors suitable: yes

Energiser distances are a guide only. Vegetation, wire type, earthing and fence condition all affect the effective range. Always read and follow the product manual.
