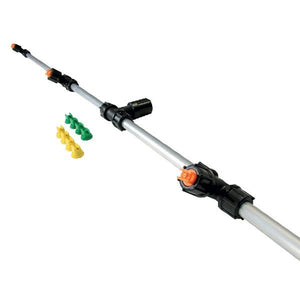

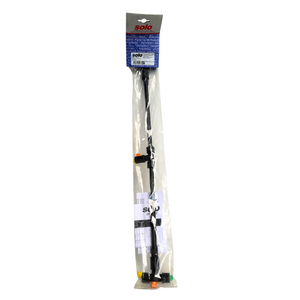

Solo 4 Nozzle Spray Boom

2 items left

Free Shipping Over $200 (up to 15kg)

Easy 30 Day Returns (some exclusions apply)

Local Family Run Business

Description

Take efficient spraying of large areas to the next level with our new range of 120cm 4-Nozzle Spray Booms. Perfect for the application of plant protection liquids over ground crops and herbicides over large lawns.

  • 120cm wide tough but light plastic spray boom.
  • Nozzle seats with cap nuts allow nozzles to be easily replaced or adjusted.
  • Three sets of ISO-standard flat spray nozzles with 80° spray angle, provide the user with a selection of spray volumes and pressure intensities.
  • Four ball valve filters installed to provide excellent filtration and to prevent dripping.
  • Ready to spray, this spray boom includes a lock nut for quick and easy connection to the spray wand.

Compatible with the following sprayers:

Solo 424, 425, 425LC, 473, 475, Manual Sprayers
Solo 441Li, 417Li, 442Li Battery Sprayers



Application Tips

  • When using the Solo 120cm 4-Nozzle Spray Boom, it is recommended to use rigid, short brass or carbon sprayer wands from the Solo Accessory range.
  • When spraying, make sure that the flat spray nozzles are not pointing parallel to the spray boom. An angle of 7 – 10° to the bar will avoid clashing of spray, and will allow overlapping of your spray pattern onto the surface.
  • Take care to maintain a suitable distance between the nozzle and the surface of the target.
  • Please observe the supplied Data chart for the correct application of your desired spray liquid. This will give you a good idea of your required delivery volume per nozzle and your desired pressure level.
  • All nozzles supplied are also individually available from Solo as a spare part.


>> PRODUCT INFORMATION FACT SHEET



Additional Information:

Weight 0.16 kg
Dimensions 135 × 5 × 5 cm
